100TECH Fuel Sending Unit 240-33 ohms 8"(200mm) Marine for Boat Vehicle Truck RV Fuel Tank Sending Unit Water Level Sensor Gas Gauge Sender
4.0 (117 items)
Limited Time SaleUntil the end
05
42
03
$28.07 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $46.79
Product details
| Management number | 223609791 | Release Date | 2026/05/09 | List Price | $18.72 | Model Number | 223609791 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- <b>100TECH Stainless Steel Fule Tank Sending Unit is Made With OKI Reed Switch(Imported from Japan). It is the Direct Replacement for Arm Type sender. The Advantage of This Fuel Level Sender Over Thick-Film Swim Arm Type Level Sender is the Reed Switch's Durability and Reliability. </b> <br> Additionally, No Moving Parts to Break. No Adjustment Needed for Tank.<br>
- The Fule/Water Level Sensor with American standard output 240-33 ohms (240 ohms at empty, 33 ohms at full). If you Need Lengths Other than 4"-32", Please Contact us Directly for More Information.<br>
- [Easy to Install] The Fuel Level Sending Unit Comes with Gasket,Mounting Screws,Well-Written and Illustrated instructions; The Wiring Instructions are Straight Forward and Easy to follow. <br>
- <b>SAE 5 hole Mounting Pattern, Heavy Duty 316 Stainless Steel and Rugged Construction. </b> <b>Wide Application: It Could Support Fuel Level Gauge and Water Level Gauge for Boat/Auto.</b><br>
- <b> 100Tech Guarantees with 1 Year Limited Warranty & Free Lifetime Technical Support <br><b>Attention: To Allow the Fule Sender not Hit the Bottom of the Tank, Please Measure from the Top of Your Tank to the Bottom on the Outside and Subtract 1 Inch the Length of Sender.</b> <br>

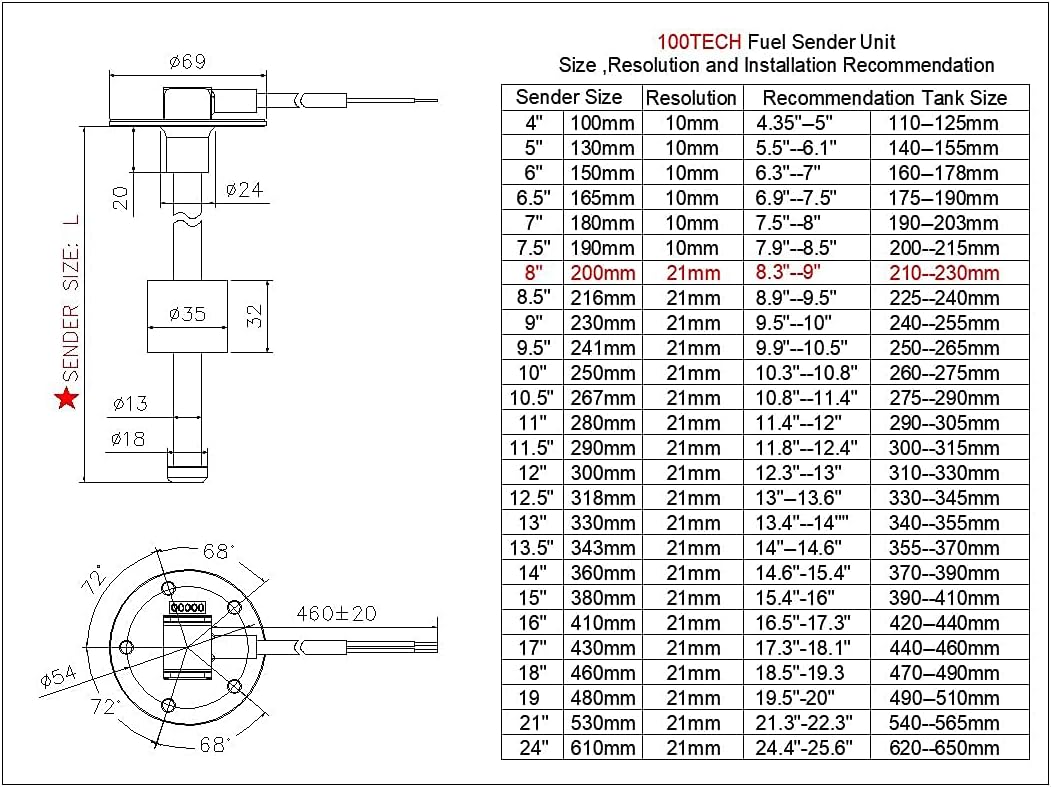

- [The Size of Float] The Diameter of Float is <b>1.38"(35mm).</b> If You Have to Drill the hole, Diameter <b>1.50"(38mm)</b> Hole Would be Perfect.
| UPC | 757842002302 |
|---|---|
| ASIN | B092MVQRV2 |
| Color | 240-33 ohms Sender |
| Model | BY200-240 |
| Terminal | Quick-connect |
| Brand Name | 100TECH |
| Unit Count | 1 Count |
| Part Number | BY200-240 |
| Switch Type | Reed Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | application |
| Manufacturer | 100TECH direct |
| Material Type | Stainless Steel |
| Mounting Type | Panel Mount |
| Connector Type | Screws |
| Control Method | App |
| Current Rating | 200 Amps |
| Operation Mode | automatic |
| Controller Type | Push Button |
| Contact Material | Stainless Steel |
| Operating Voltage | 240 Volts |
| Specification Met | Sae |
| Compatible Devices | Boat, Truck, RV, Car |
| Number of Positions | 1 |
| Upper Temperature Rating | 85 Degrees Fahrenheit |
| Compatible with Vehicle Type | Boat, Truck, RV, Vehicle |
| International Protection Rating | IP65 |
