4"/5"/6" Universal Milling Head Set - Precision Semi Universal Dividing Head for Milling Machine with 3 Indexing Plates, Tailstock & 3 Jaw Chuck for Milling, Grinding, Drilling (100mm)

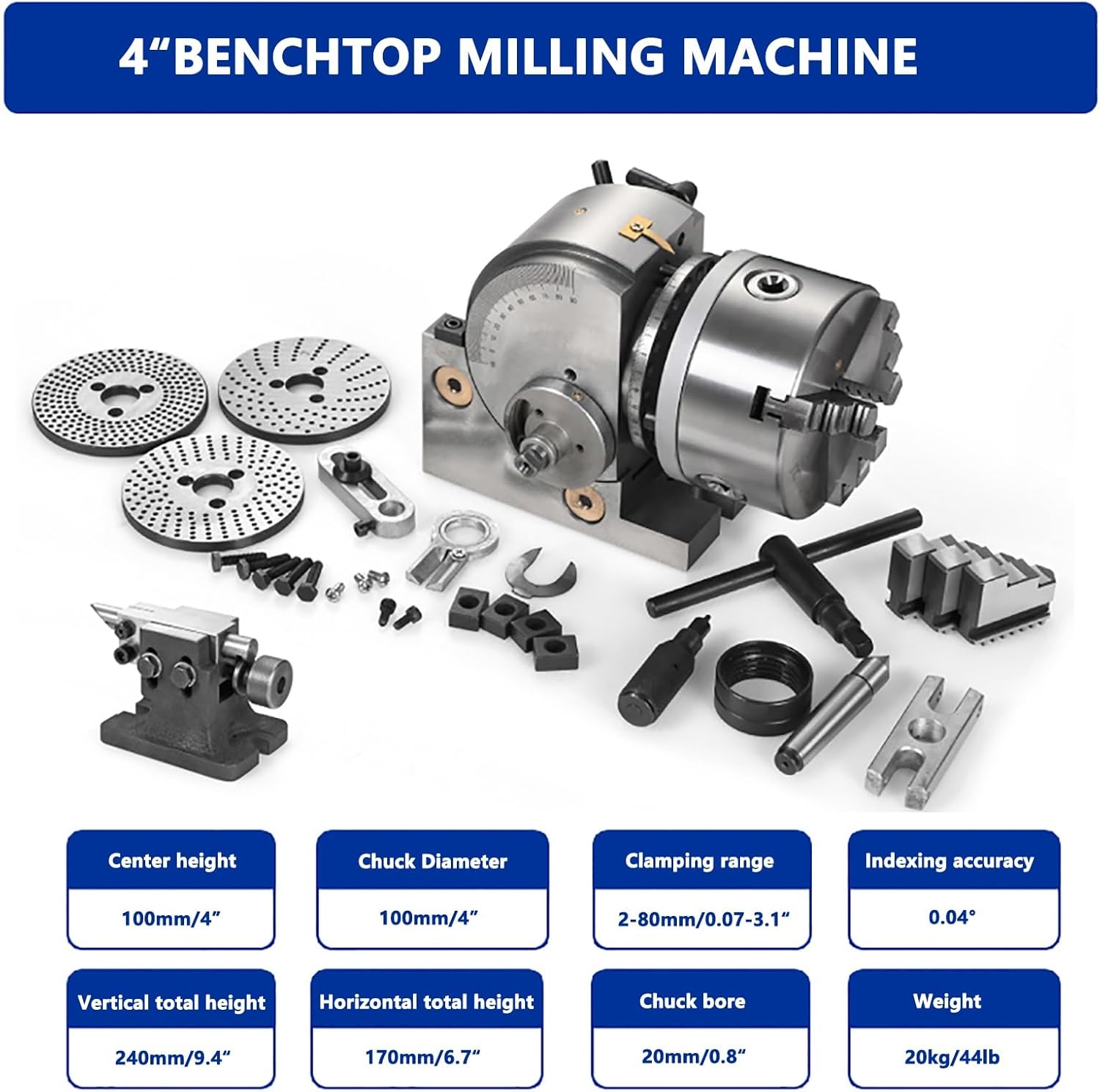

The indexing head is a versatile machine tool accessory designed for milling machines, allowing you to divide workpieces into precise equal parts for a variety of machining applications. With the help of the indexing scale ring, vernier, positioning pin, indexing disk, and exchange gears, you can effortlessly achieve accurate angles and divide circumferences into any desired sections. This functionality makes it ideal for creating intricate grooves, spur gears, helical gears, and cam profiles using a range of cutting tools. The design offers both horizontal and vertical operation, enhancing convenience and flexibility in your workspace. Constructed from durable cast iron, this indexing head is built for long-lasting performance, making it an excellent choice for metal mold machining and other demanding tasks. Specifications include a center height of 100 mm (3.9 in) or 130 mm (5.1 in) and chuck diameters of 100 mm (3.9 in), 125 mm (5 in), or 160 mm (6.3 in). The 3-jaw chuck accommodates clamping ranges from 2-80 mm (0.07-3.1 in), 2-110 mm (0.07-4.3 in), to 3-145 mm (0.1-5.7 in), ensuring versatility for various workpiece sizes. Weighing between 20 kg (44 lb) and 29 kg (64 lb), this indexing head is sturdy yet manageable. Included in the package are all necessary accessories to facilitate your machining tasks. Please note that measurements are manually taken and may vary slightly; refer to actual sizes for precision. Due to different screen displays, there may be minor color differences. If you have any questions or need assistance, our customer service team is ready to respond within 24 hours, dedicated to ensuring your satisfaction. Upgrade your milling capabilities with this essential indexing head today!

• Discover our Rotary Tables crafted from Forged Cast Iron (FC30), known for its exceptional wear resistance and durable surface. The high hardness prevents scratches and abrasion, ensuring longevity. Perfect for precision machining, our tables are designed to withstand heavy use, making them an essential tool for your workshop and a reliable partner for your long-term projects.
• Gear Ratio: Featuring a 1:40 Gear Ratio, this 24-Hole Direct Indexing Dial enables precise divisions of 2, 3, 4, 6, 8, 12, and 24. Perfect for Small Milling Machines, it enhances your Milling Capabilities. The included Tailstock offers robust support for long Metal Bars, ensuring stability and improved working conditions for your machining projects.
• The Milling Machine Rotary Table features a handwheel with clear graduations for accurate measurements, ensuring intuitive operation. Easily control even the smallest rotations. The headstock of the indexing head tilts from 10° below horizontal to 90° vertical, allowing for versatile material handling by adjusting the angle. Perfect for precision machining tasks.
• Universal Indexing Plates: Enhance your precision with the universal indexing head featuring a direct indexing plate and interchangeable plates on the headstock. Two additional plates with varying hole counts allow for versatile setups, ensuring accurate spacing between cuts. Ideal for various machining applications, these plates are designed to improve your workflow and accuracy.
• Multi-Functional Indexing Head: Perfect for Milling Machines, Grinding Machines, Drilling Machines, and Planing Machines. Designed with a Rational Structure for Reliable Performance, this Indexing Head is Ideal for Simple Slitting on Milling Machines and Other Specialized Equipment. Enhance Your Machining Efficiency with This Versatile Tool.
