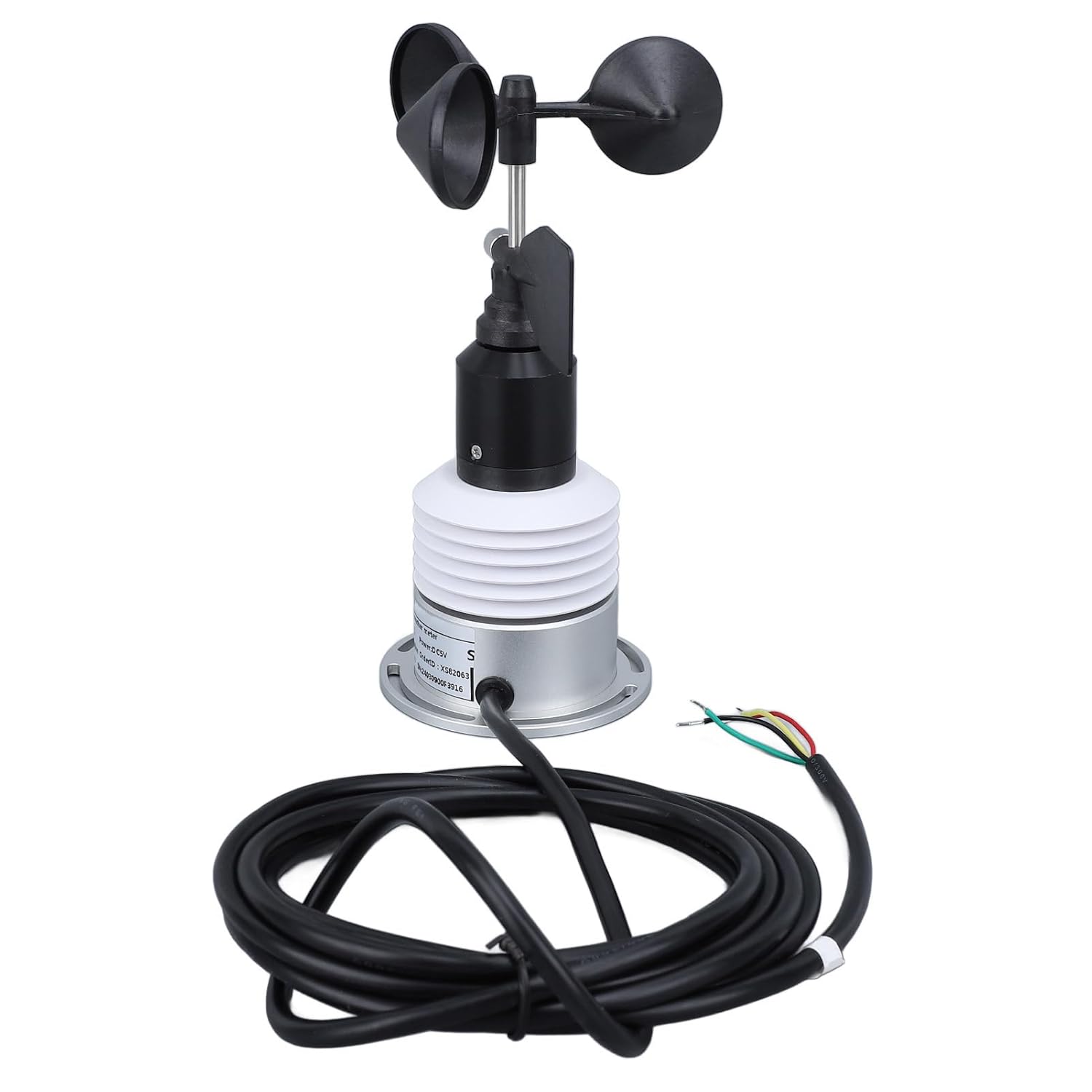

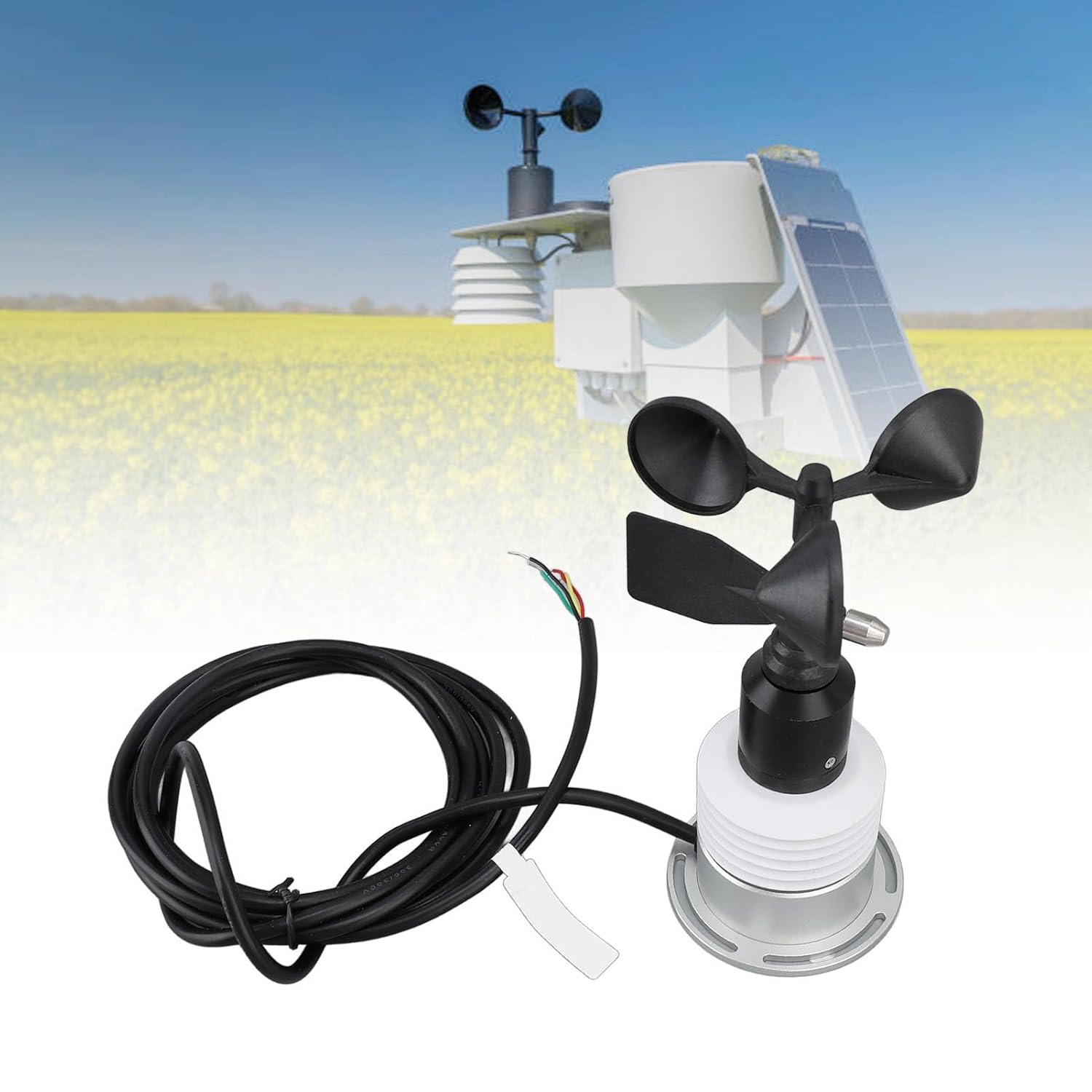

Acouto 5-in Weather Meter Sensor for Wind Speed, Direction, Temperature, Humidity, and Pressure – Compact & Versatile Monitoring

1. Mini Design: The weather meter is a compact and highly integrated integrated sensor, which is smaller in design and equally powerful compared to traditional integrated environmental sensors. 2. Multifunction Monitoring: Measures 5 weather elements, including wind speed, wind direction, air temperature, humidity, and air pressure in a compact and lightweight design. 3. Wide Environmental Adaptability: Tested in harsh environments for temperature, , and salt spray resistance, suitable for various applications including , meteorology, forestry, and more. 4. Highly Accurate Data: Utilizes efficient filtering algorithm and special compensation technology for rain and fog weather, ensuring stable and consistent data readings. 5. Versatile Application: Ideal for wind monitoring in , meteorology, forestry, power plants, chemical factories, ports, railways, highways, and more, enabling appropriate response measures to be taken. Spec: Item Type: Wired Weather Meter Product Size: Approx. / 6.5x2.8in Gross Weight: 457g/16.1oz Material: ABS, Aluminum Alloy Supply Voltage: DC5V Communication Type: TTL (for Modbus RTU) Cable Length: 2 Meters Operating Environment: 0‑100%RH, ‑40℃ to +60℃ Protecting Grade: IP64 Built in Sensors: Wind Speed, Wind Direction, Temperature, Humidity, Air Pressure Widely Used: Wind Direction Measurement in Greenhouse, Environmental Protecting, Ship, Wharf, Aquaculture, Advertisement Gate, Meteorology, Ocean, Environment, Airport, Harbor, Laboratory, Industry, and Transportation Environment. Wind Speed: 0 to 45m/s range, start wind speed ≤0.8m/s, ±(0.5+0.02V)m/s accuracy, 0.1m/s resolution, 40mW power consumption Wind Direction: 0 to 359° range, ±3° accuracy, 1° resolution, 40mW power consumption Atmospheric Temperature: -40 to 80°C range, ±0.3°C accuracy, 0.1°C resolution, 1mW power consumption Atmospheric Humidity: 0 to 100%RH range, ±5%RH accuracy, 0.1%RH resolution, 1mW power consumption Atmospheric Pressure: 300 to 1100hPa range, ±0.5 hPa (25°C) accuracy, 0.1 hPa resolution, 0.1mW power consumption Sensor Total Power Consumption: Wiring Diagram: TTL signal output, the sensor wire sequence is defined as follows: Red: power positive VCC Green: power negative GND Black: TXD Yellow: RXD Note: Make sure the wiring is correct before sending power. Communicating Protocol: All commands in the manual of weather meter are RTU protocol format commands. All have been configured at the factory, if you need to modify the protocol, refer to the relevant commands or ask for help. Baud rate 9600, 8 data bits, 1 stop bit, no check. 2 frames of data communicating interval of at least 500ms. The default address is 1, and the RTU communicating format is as follows: Number of address bytes: 1 byte Number of command bytes: 1 byte Number of register address bytes: 2 bytes Number of data bytes: N bytes Number of CRC check bytes: 2 bytes I.Register address: The weather meter can integrate five modes, namely wind speed, wind direction, air temperature, air humidity, and atmospheric pressure. Each sensor has its own register address. II.Configuration address and baud rate: The commands to write the device address are the same for the weather meter. III.CRC verification steps: 1. Preset the 16 bit register to hex , call this register the CRC register 2. Isolate the first 8 bit data with the lower bit of the CRC register, and put the result in the CRC register 3. Check the lowest bit by shifting the contents of the register one bit to the right (toward the lower bit) and filling the highest bit with a 0 4. If the lowest bit is 0: repeat step 3 (shift again) if the lowest bit is 1: the CRC register is iso orthogonal to the polynomial A001 (1010 0000 0000 0001) 5. Repeat steps 3 and 4 until it is shifted right 8 times so that the entire 8 bit data is all processed 6. Repeating steps 2 through 5 for the other 8 bit data 7. The final CRC register obtained is the CRC code (the CRC code obtained is low before high). Troubleshooting: The meter displays an incorrect value when TTL is output. The meter may not be able to acquire data correctly due to wiring problems or communicating serial port failure. Please check whether the wiring is correct and firm, whether the serial port is occupied, and whether the serial port setting is correct. How to Use: Pairing according to the appropriate communicating type TTL (for Modbus RTU) can be used. PackageList: 1 x Wired Weather Meter Note: 1. Please check whether the package is intact, and check whether the product model is consistent with the selection; 2. Do not connect the wires with electricity, check the wiring is correct before powering on; 3. The sensor is a precise device, the user in the use of the user do not disassemble, with incisive objects or corrosive liquids in contact with the sensor surface, in order to avoid damage to the product. 4. the installation environment to

• Compact Design - This weather meter features an exceptionally small design, allowing you to easily transport it without sacrificing performance. Unlike traditional sensors, its miniaturization ensures that it fits comfortably in tight spaces while providing powerful, accurate readings for your meteorological needs.
• Multifunctional Monitoring - Equipped to measure five weather parameters, this device monitors wind speed, wind direction, temperature, humidity, and pressure simultaneously. Its lightweight form factor makes it for on-the-go monitoring, ensuring that you receive comprehensive insights without the bulk of larger sensors.
• Durability & Adaptability - Designed to thrive in harsh conditions, this weather meter undergoes rigorous testing for temperature extremes, waterproofing, and salt spray resistance. It is perfectly suited for various applications such as , forestry, and meteorology, ensuring reliable performance no matter the .
• Data Collection - Thanks to an advanced filtering algorithm and innovative compensation technology, this sensor delivers accurate and stable readings even during inclement weather. Whether it’s rain or fog, that the data provided is dependable, allowing for informed decision-making.
• Broad Applications - for multiple sectors including , meteorology, forestry, and transportation, this multi-purpose sensor enables you to generate actionable insights. With its versatile functionality, you can quickly adapt to changing conditions in power plants, factories, and transportation hubs.
