Brixwell Adjustable Pivot Hinge Glass to Curb Mount, Solid Forged Brass, Satin Chrome Finish, Top or Bottom Mount, 3/8" and 1/2" Glass Thickness, 4" Overall Width, Frameless Shower Hardware

The Brixwell Adjustable Pivot Hinge Glass to Curb Mount in Satin Chrome finish is designed for frameless shower enclosures requiring top or bottom mounting with precise alignment options. Made from solid forged brass with precision-machined stainless steel internal components, this hinge combines strength and functionality for door hardware, shower hardware, and glass hardware applications. It features dual precision wound stainless steel return springs that allow self-centering 0 degree return and self-closing from a 25 degree door angle. The hinge includes an adjustable mechanism, allowing the door closing position to be fine-tuned after installation by loosening two screws with the included 3mm hex wrench, adjusting the door up to 90 degree in or out, and retightening. This feature offers flexibility for installers to align shower doors with existing walls or panels. The hinge is designed for 3/8" (10mm) and 1/2" (12mm) tempered glass. Rated at 40 lbs per hinge, two hinges support doors up to 120 lbs with a maximum width of 36". Dimensions include overall width of 4", overall height of 2-11/16", plate height (cutout step) of 2-1/4", plate thickness of 3/16" per side, base thickness of 11/32", chamfer thickness of 5/64", back plate width of 7/8", and end to end hole spacing of 3-1/8". The non-mouse ear design improves clearance and adjustment flexibility, especially for frameless hinge and pivot hinge installations. The satin chrome finish provides a refined appearance while coordinating with other shower hardware and glass mount fittings. Hardware includes matching finish stainless steel hex clamp screws, crosshead screws, and a hex wrench for installation.

• SOLID FORGED BRASS: Built from solid forged brass with satin chrome finish, combining strength with refined design that integrates with shower hardware, glass hardware, and frameless hinge applications.
• SELF-CENTERING ACTION: Equipped with dual precision wound stainless steel springs for self-centering 0 degree return, offering smooth door alignment with self-closing capability from 25 degree door angle in daily operation.
• DETAILED DIMENSIONS: Measures 4" width, 2-11/16" height, plate height 2-1/4", plate thickness 3/16", base thickness 11/32", chamfer 5/64", back plate width 7/8", with 3-1/8" back plate end to end hole spacing.

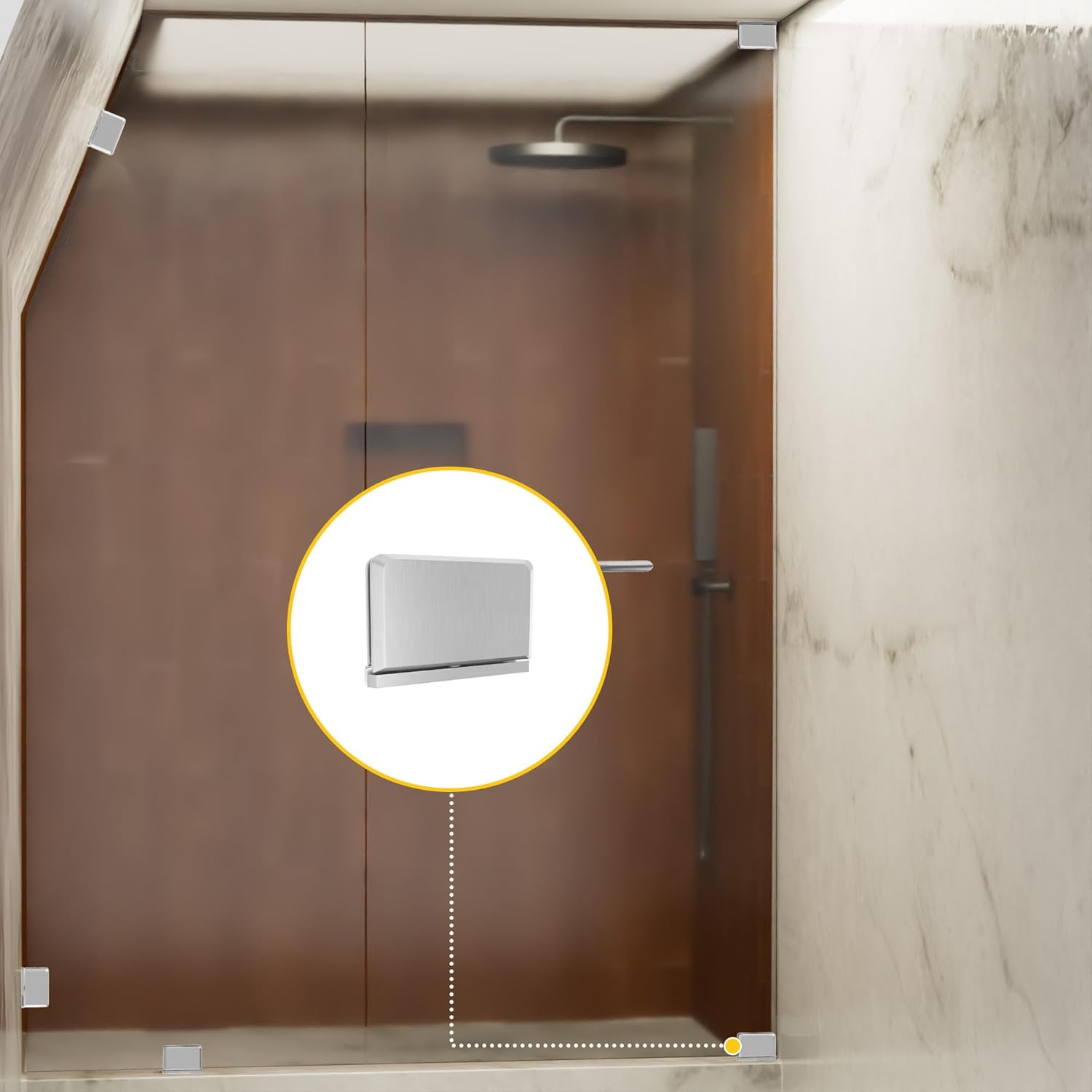

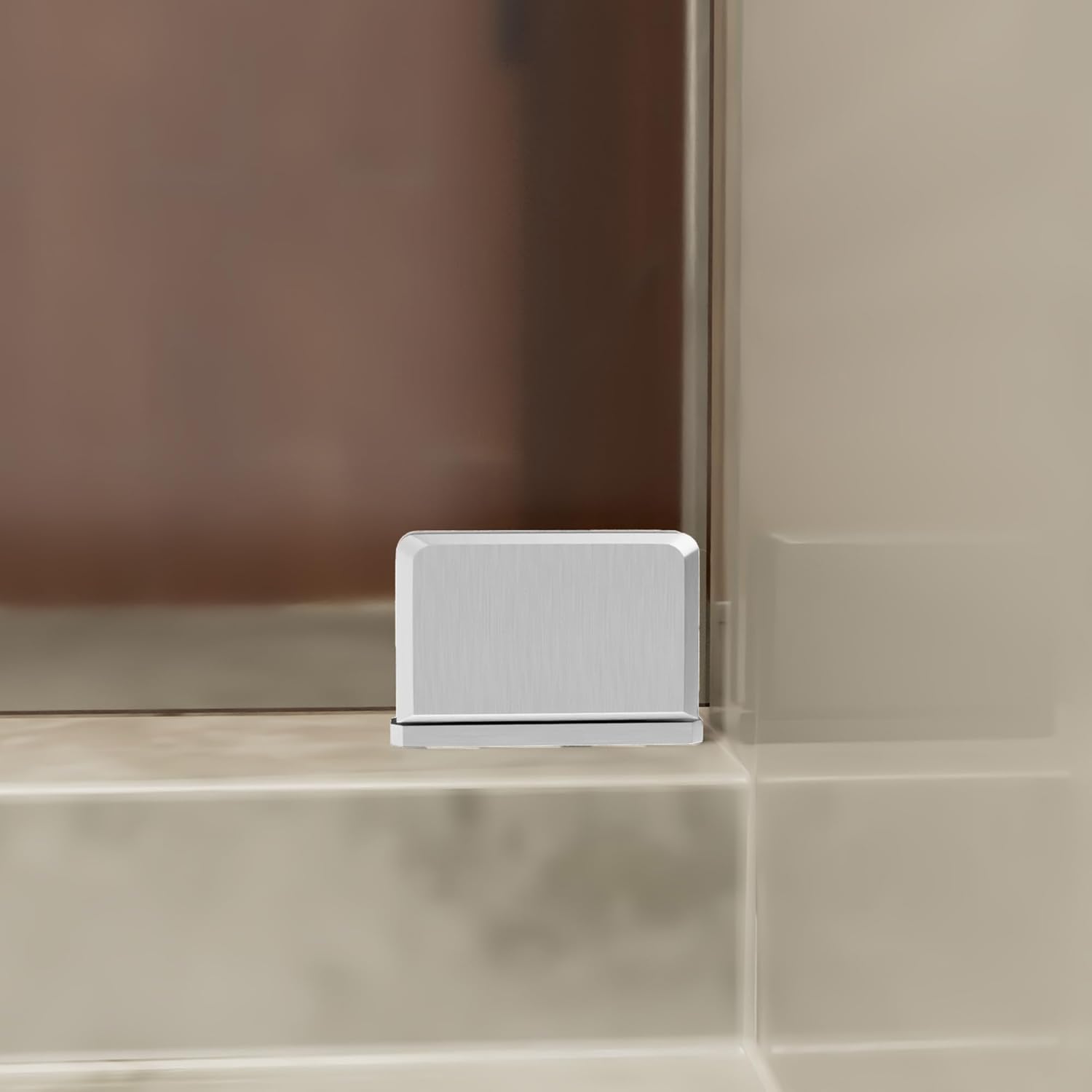

• TOP OR BOTTOM MOUNT: Designed for frameless shower doors with top or bottom curb mounting, providing stable support and controlled pivot movement in shower hinge and pivot hinge installations for residential and light commercial enclosures.
• SELF-CENTERING ACTION: Equipped with precision wound stainless steel return springs for self-centering 0 degree return, with self-closing function from 25 degree door angle and optional 5 degree positive closure capability.
• COMPLETE INSTALLATION: Includes matching stainless steel hex clamp screws, crosshead screws, and hex wrench, blending with satin chrome finish and fitting pivot hinge, mount hinge, and shower hardware systems.
