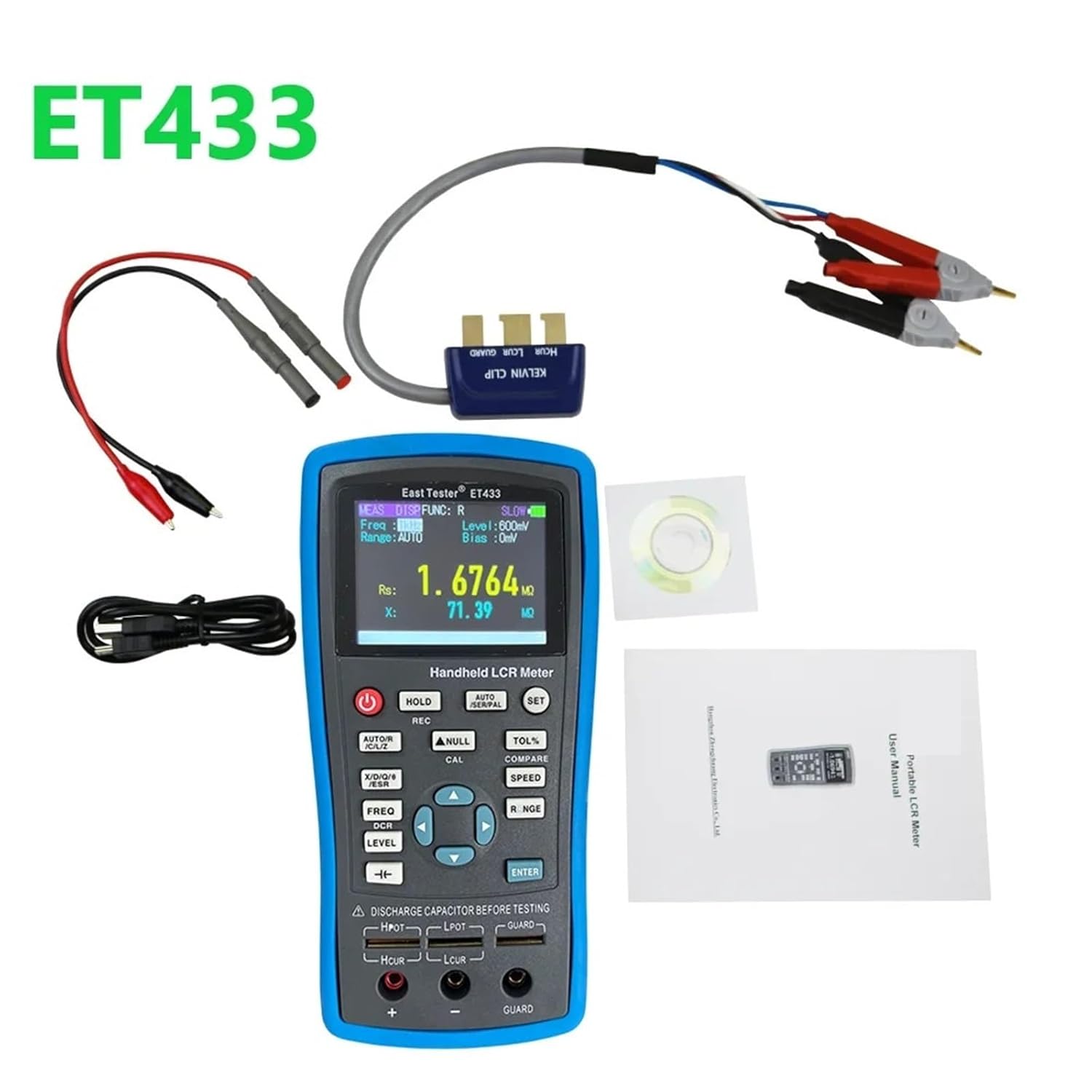

LCR Meter, ET433 Handheld LCR Digital Bridge Capacitance Inductance Resistance Test Tools Digital Display Screen,Digital Bridge(Standard)

ET433:Test frequency: 100Hz ~ 100kHZ; Accuracy: 0.2%, 4 and a half precision display; Test frequency: 1Hz continuous step adjustable; level 10mV ~ 1100mV, 1mV continuous step adjustable; component access automatic identification function; Electrolytic capacitor function, DC resistance (DCR) function;Product features:uMeasurable frequency up to 100k Hz,continuously adjustable at a step of 1 Hz.;uSpecial function:Automatic identification and measurement after components are connected;uInternal bias voltage output (0mV-500mV),1mV step, continuously adjustable;uDC Resistance (DCR) measurement;uElectrolytic capacitance measurement;uSupport for screening and deviation measurement ;uBasic measuring accuracy 0.2%;uadjustable measuring speed;u2.8"TFT display screen, a 4 1/2 digit display;uUSB communication interface;uPower supply by high capacity lithium battery;uSupport for SCPI protocol;uManual and automatic range;uOpen circuit and short circuit calibration;uMultiple testing ports;

• Wide Frequency and Voltage Range: The ET433 supports a test frequency range from 100Hz to 100kHz with 1Hz continuous adjustable steps. It also offers adjustable test levels from 10mV to 1100mV in 1mV steps, ensuring precise control for a variety of applications
• Automatic Component Identification and Measurement: The device automatically identifies and measures components once they are connected, streamlining the testing process and enhancing user convenience for quick and accurate results
• Versatile Measurement Functions: It includes features for DC resistance (DCR) measurement and electrolytic capacitance measurement, as well as internal bias voltage output (0-500mV), adjustable in 1mV steps, providing flexibility for diverse testing needs
• Accurate and Customizable Measurement: With a basic accuracy of 0.2% and adjustable measurement speed, the ET433 offers highly accurate and customizable testing. It also supports both manual and automatic range adjustments for optimal results

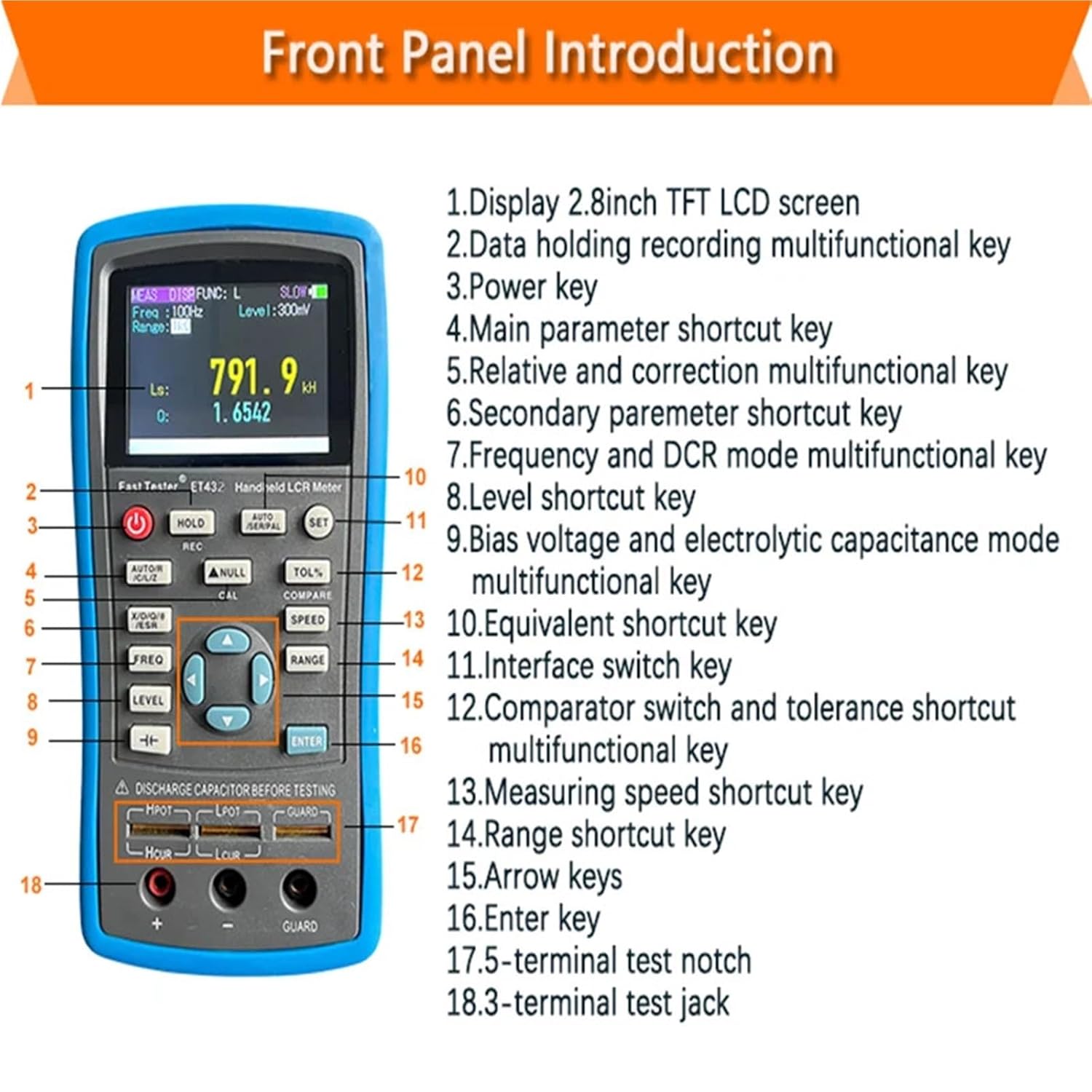

• Convenient User Interface and Connectivity: The 2.8" TFT display with a 4 1/2 digit display ensures clear readings, while the USB communication interface and support for SCPI protocol provide seamless data transfer and system integration. The device is powered by a high-capacity lithium battery for portability
