Temperature Controller XR03CX-5N0C1 Temp Control Thermostat, Digital Temperature Switch Controller, NTC Sensor, 230V for Refrigerating Freezer Fridge Hatching

SpecificationSupply voltage: 230V/ACSensor type: NTCBuzzer: NoDisplay unit: ℉/℃Compressor load current: 20 AOperating Temperature: 32~140℉(0~60℃)Applicable temperature range: -40~210.2℉(-40~99℃)Product dimensions: Front 1.26" x 2.91" (32x74 mm);Mounting dimensions: Opening 2.79" x 1.14" (71x29 mm)Built-in depth: 1.97" (50mm)Normal temperature, stop frost, additional alarm/bank light output type thermostat

• Size: The XR03CX-5N0C1, in 1.26" x 2.91" x 1.97" (32x74x50 mm) short format, is microprocessor based controller suitable for applications on normal temperature refrigerating units.

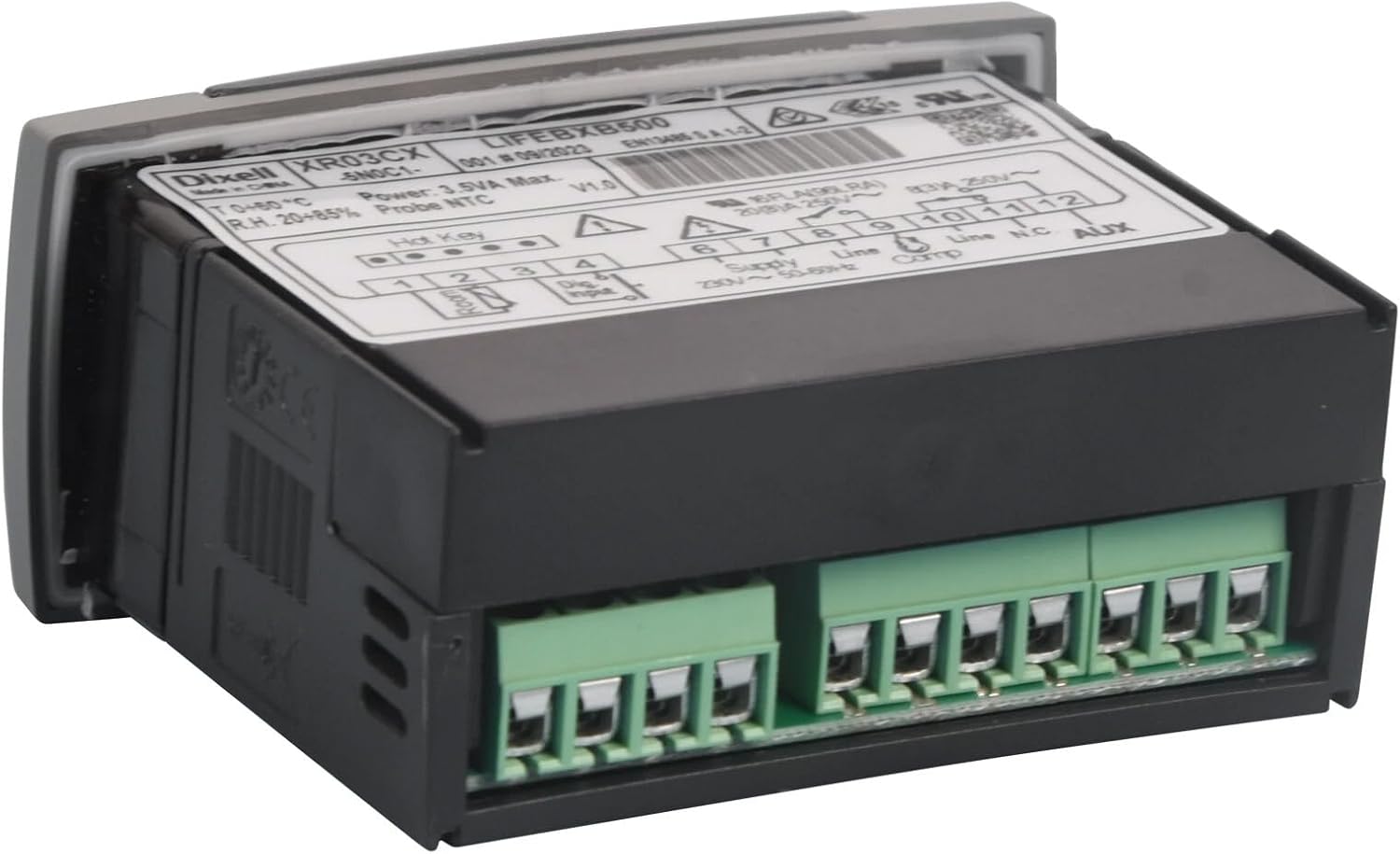

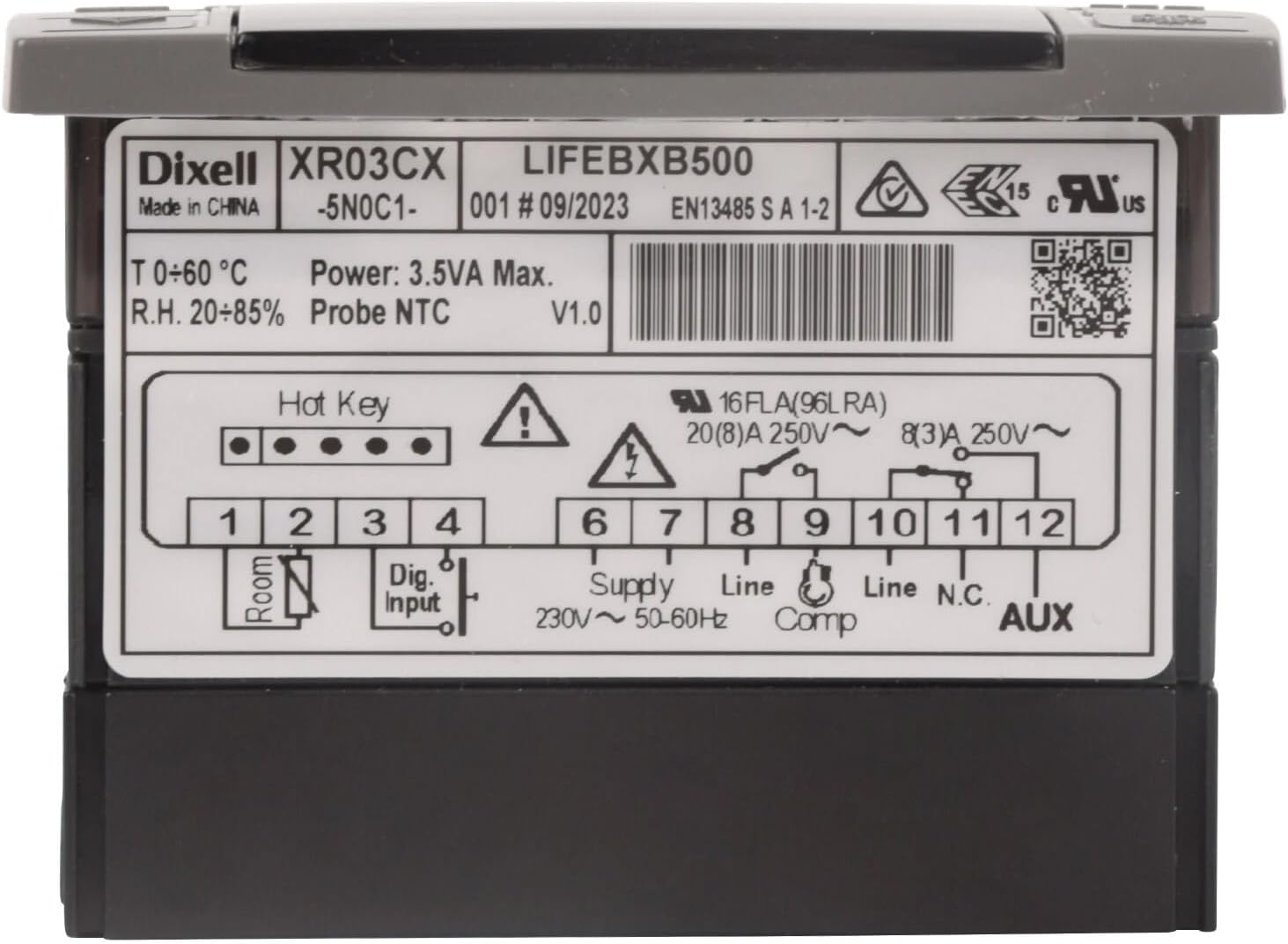

• Two Relay Output: One for compressor and the other one for alarm signalling or as auxiliary output. It provides an NTC probe input and a digital input for alarm signalling, for switching the auxiliary output or for start defrost.
• Programmable: The instrument is fully configurable through special parameters that can be easily programmed through the keyboard or the by HOTKEY.
• Defrost: Defrost is performed through a simple stop of the compressor. Parameter "id" controls the interval between defrost cycles, while its length is controlled by parameter "Md" .
• Instrument & Mounting: XR03CX-5N0C1 shall be mounted on vertical panel, in a 1.14" x 2.79"(29x71 mm) hole, and fixed using the special bracket supplied. The temperature range allowed for correct operation is 32~140℉(0-60℃). Avoid places subject to strong vibrations, corrosive gases, excessive dirt or humidity. The same recommendations apply to probes.
