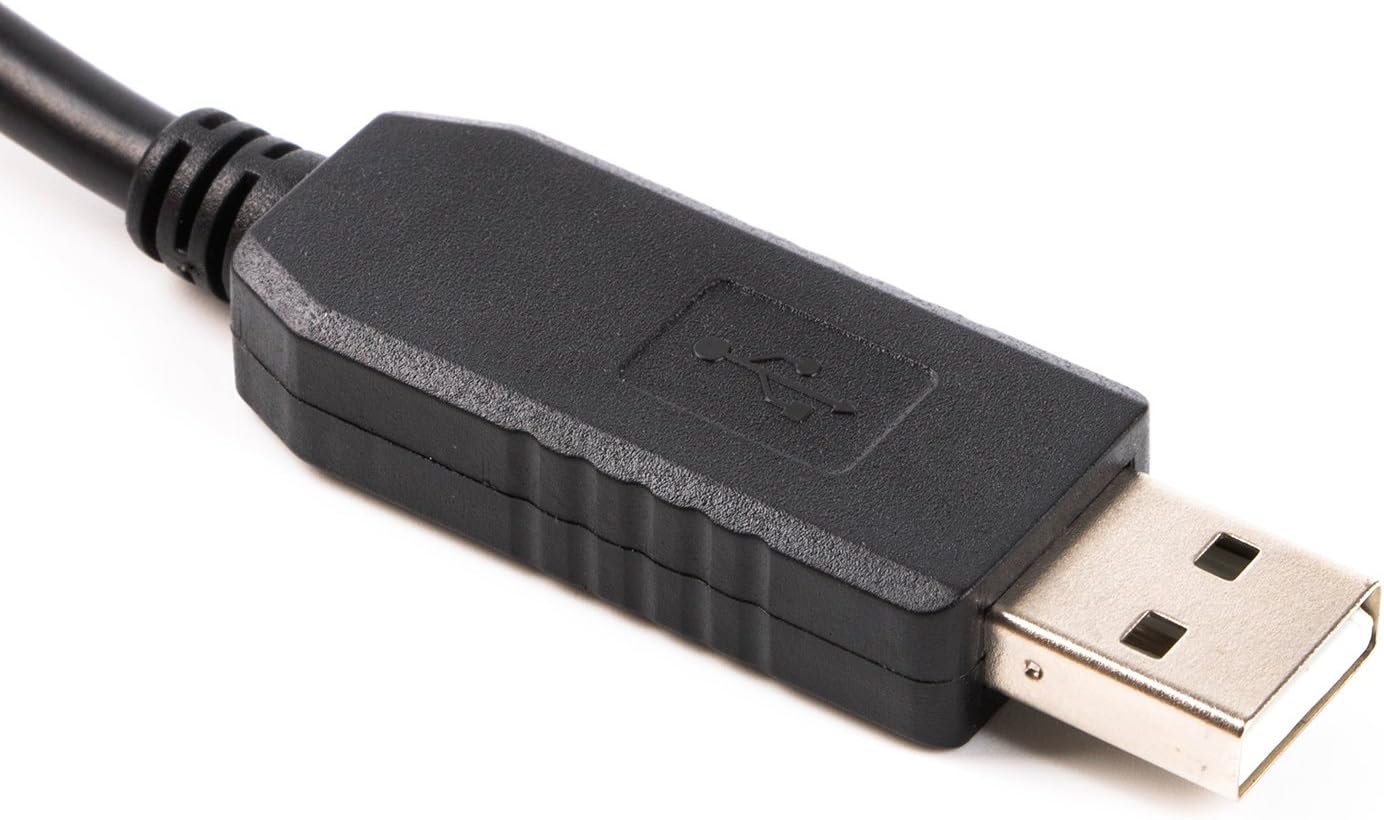

USB Serial db9 ft232r USB rs232 Null Modem Cable pc Control tv Cable (2-TXD(Yellow), 3-RXD(Orange),5-GND(GND), 7-CTS(Green),8-RTS(Brown), 1/4/6/9-NC)

ftdi usb serial null molden DCE adapter cable This cable also can be used for PC control the TV, smart TV, of cause, not all models from all brands, please check with your TV pinout then buy it win8 10 android linux mac cross wired usb serial db9 ftdi ft232r usb rs232 null modem cable This cable can make your laptop pc(with USB,without DB9) to communicate with your desktop PC(with DB9 COM port) communicated each other. USB to Null Modem (Cross-Wired) RS232 Serial Adapte USB2.0 RS232 to DB9 female cable FT232RL+ZT213 chip USB2.0 standard, full speed Baud Rate up to 921.6Kb Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)): 2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC Standard DB9 COM port pinout(pc with usb to RS232 terminal device) 2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC 5c*26AWG, copper, 1.8m, black Support Android, Support Win 10, 8, Win 7, XP, 2000, Linix, Mac OS Support EEPROM, support Vendor ID re-write,support Mprog3.5 Support FTDI VCP driver and D2XX driver Neutral packing: zipper PE bag for each.

• Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)): 2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
• Standard DB9 COM port pinout(pc with usb to RS232 terminal device):2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC
• Support Android, Support Win 10, 8, Win 7, XP, 2000, Linix, Mac OS Support EEPROM, support Vendor ID re-write,support Mprog3.5 Support FTDI VCP driver and D2XX driver
