Valve Spring Compressor Tool Removal Compatible with Honda Acura K Series K20 K24 F20C F22C Black

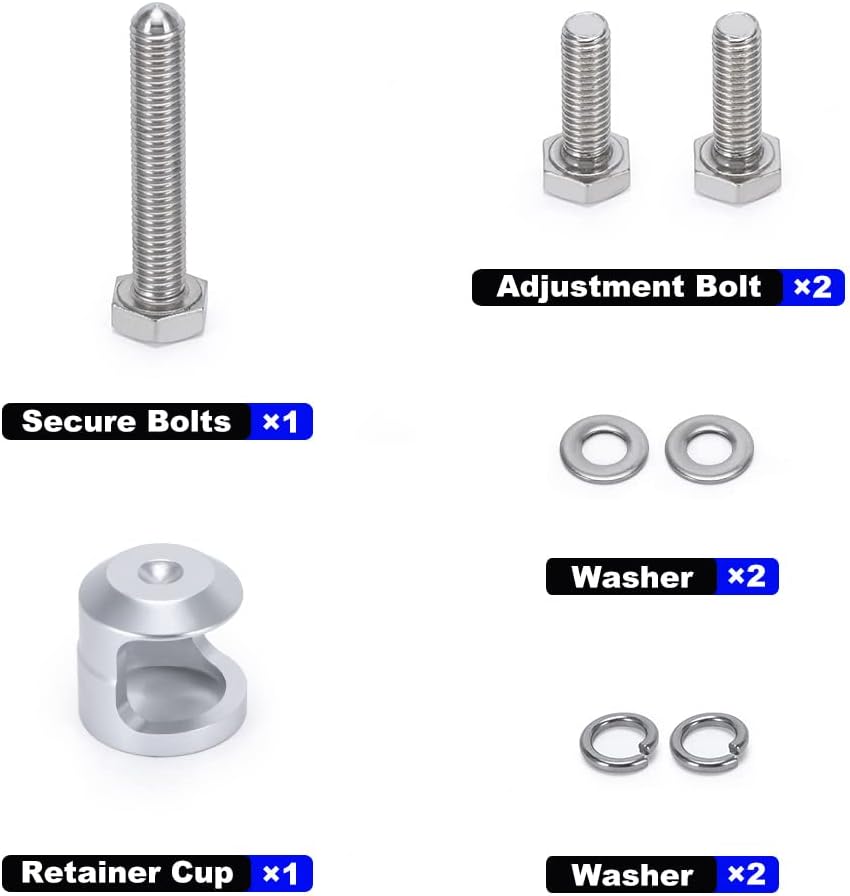

Features:The Valve Spring Compressor is CNC machined, anodized, laser engraved.This tool makes it easy to replace valve seals, valves, springs, and retainers.The tool is attached to the head with 2 short bolts.Once the tool is attached to the head you put a retainer cap (comes with kit) on the retainer/spring(s) you want change next you tighten a bolt that will push down on the retainer allowing you to easily remove the keepers.Next simply UN-tighten the bolt and remove the retainer cap to remove the spring(s).You can use this tool with the head on the block.Installation instruction:If using with the head on the block, cylinders need to be pressurized to 100PSI to prevent the valve from falling into the cylinder. If using with the head out of the engine compartment, put something bellow the valve to keep it pressed upward.Align the holes on the tool with the one the head, and place the shorter bolts and washers to secure the tool.Place the retainer cap on top of the retainer, lubricate the long bolt with provided grease and start turning the long bolt clockwise with the help of a wrench (14mm) to apply pressure to the retainer cap and compress the valve spring until the keepers are completely visible and can come out.Using the magnetized end of the screw driver remove the keepers. To reinstall the valve assembly, place the valve (if removed for some reason), valve seals, valve spring, and retainer; compress the assembly using the same steps as above.Place a small amount of the provided grease on the flat tip of the screw driver and place a keeper over it, the grease will hold the keeper in place and allow you to place the keepers easily. Once keepers are in place, start turning the bolt counterclockwise to relieve the pressure of the valve spring.

• ✿OUTSTANDING DESIGN:Roller ball thrust bearing provides smooth operation even with uprated performance valve springs.
• ✿CHEAPER BUT STURDY:made of high quality aluminum,textured and durable.
• ✿SAVE YOUR TIME:can change your valve spring in short time and won't damage your parts.
• ✿EASY TO USE:allows easy replacement of valve stem seals, valves, springs, and retainers.(you can use a little antisneeze on the threads)
• ✿COMPATIBLE WITH CAR MODEL: Honda Acura K Series K20 K24 F20C F22C(you can see the detail in the picture or the product description)
